TSC MH241P Thermal Transfer Printer with LCD & Touchscreen

£1,055.95 exc. VAT

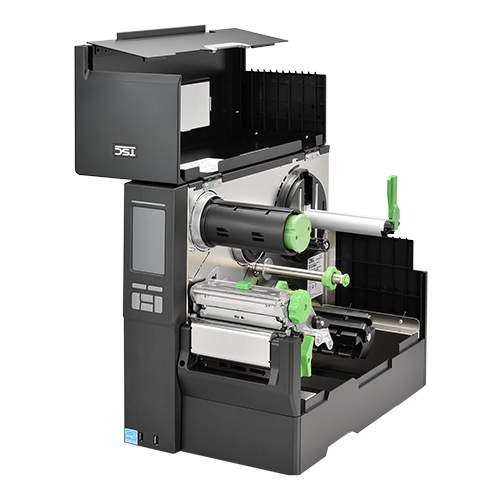

TSC MH241P Thermal Transfer Printer

  •  Sophisticated TSC Sense Care
  • Dynamic Remote Printer Management
  • Multi-Connectivity
  • Highly Adaptable
  • Brilliant User Experience



SKU: MH241P-A001-0302 Category: Tags: , ,

MH241P Series Industrial Barcode Printer

A Feature-Rich MH Family Beyond Your Expectations.
The MH241/MH261 Series is TSC’s mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities. The MH241/MH261 Series is equipped with sophisticated TSC Sense Care supported by SOTI Connect and TSC Console remote printer management to monitor printer status and give warning messages to ensure maximum productivity and avoid downtime. Capable of seamless connectivity, the MH241/MH261 Series is supported by both Apple-certified MFi Bluetooth 5.0 or 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module that turns the barcode label printer into a connected network.



Resolution 8 dots/mm (203 DPI)
Printing method Thermal Transfer and Direct Thermal
Max. print speed 356 mm (14”)/second
Max. print width 104 mm (4.09”)
Max. print length 25,400 mm (1000”)
Enclosure Die-cast print mechanism and base with a bi-fold metal cover with a large clear media view window
Physical dimension 276 mm (W) x 412 mm (H) x 502 mm (D)
10.87” (W) x 16.22” (H) x 19.76” (D)
Weight 18.93kg (41.73 lbs)
Label roll capacity 203.2 mm (8”) O.D.
Internal rewinder (full roll) Standard (8” O.D.)
Ribbon 600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside)
Ribbon width 25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Processor 32-bit RISC CPU
Memory •512MB Flash memory
• 256MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Interface • RS-232
• USB 2.0 (High-speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) + Centronics (factory option)
• Internal Bluetooth 5.0 MFi (factory option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option)
Power Internal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
LCD display/ Operation buttons • Multi-language selectable
• 6 operation buttons
• 1 LED (with 2 LEDs Green & Red)
LCD 4.3” color display, 480 x 272 pixel; Resistive touch screen
Sensors • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
• Media near-end sensor
Real time clock Standard
Internal font • 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font
Barcode 1D barcode
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D barcode
PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font & barcode rotation 0, 90, 180, 270 degree
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Media type Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)
Media width 20 ~ 114 mm (0.79″ ~ 4.5″)
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter 3.81 mm / 76.2 mm (1.5”/ 3”)
Label length 5~25,400mm (0.2”~1,000”)
Environment condition • Operation: 0 ~ 40?C (32 ~ 104?F), 25 ~ 85% non-condensing
• Storage: -40 ~ 60 ?C (-40 ~ 140?F), 10 ~ 90% non-condensing
Safety regulation FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR®
Environmental concern Comply with RoHS, WEEE
Accessories • Windows labelling software CD disk
• Quick start guide
• USB port cable
• Power cord
Limited warranty • Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first
Factory option • GPIO (DB15F) + Parallel interface
• Internal Bluetooth 5.0 MFi*
Dealer option • 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing) *
User option • KP-200 Plus keyboard display unit
