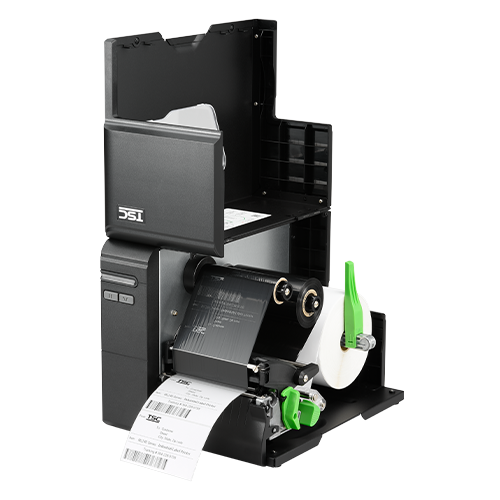

ML340P SERIES
Simplicity and Agility Just One Step Away
Take a step into a new generation of smaller industrial barcode label printers that are designed to fit into more work areas.
They feature a durable design, ease of use, noise-reduced printing, self-diagnostic TPH Care and easy maintenance.
TSC ML340P Series is a brand new generation of industrial barcode label printers.
The light industrial ML340P Series features ease of use, intuitive colour GUI display, noise-reduced printing, and self-diagnostic TPH Care.
The ML340P Series has a durable and flexible design and does not require special tools for performing common services and maintenance. Its compact footprint is perfect for crowded work environments.
The ML340P Series is designed for durability while producing high quality printed labels.
With its enhanced design and printing algorithm, the noise level from printing operation is dramatically reduced.
The adjustable thermal printhead and self-diagnostic TPH Care mechanism ensure optimal print quality regardless of the application or label design.
| Specifications at a glance: | |
| Resolution: | 300 dpi (12 dots/mm) |
| Print Method: | Direct thermal/Thermal transfer |
| Display: | Colour LCD with buttons |
| Hardwire Connectivity: | Ethernet Serial RS-232 USB USB Host |
| Wireless Connectivity: | Bluetooth MFi Wi-Fi |
| PRINTER MODEL | ML340P |
| Resolution | 300 dpi (12 dots/mm) |
| Printing method | Thermal Transfer & Direct Thermal |
| Max. print speed | 5 ips (127 mm/s) |
| Max. print width | 4.16″ (105.7 mm) |
| Max. print length | 40″ (1,016 mm) |
| Enclosure | Die-cast print mechanism/Metal cover with large media window |
| Physical dimension | 248 mm (W) x 245 mm (H) x 330 mm (D) 9.76” (W) x 9.65” (H) x 12.99” (D) |
| Weight | 7.6 kg (16.76 lbs) |
| Label roll capacity | 139.7 mm (5.5“) O.D., 1” or 1.5” I.D core |
| Ribbon | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
| Processor | 32-bit RISC CPU |
| Memory | • 128 MB Flash memory • 64 MB SDRAM |
| Interface | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard • Internal Bluetooth 4.2 (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option)* |
| Display | • 2.3” colour LCD • 1 status indicator |
| Operation switch, button | • 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right) |
| Sensors | • Gap transmissive sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Ribbon end sensor • Head open sensor |
| Real-time clock | Standard |
| Internal fonts | • 8 alpha-numeric bitmap fonts • Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Bar code | • 1D bar code Code 11, Code 39, Code 49, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5, EAN-8, EAN-13, EAN-14, EAN-128, ITF14, UPC-A, UPC-E, EAN and UPC 2(5) digits addon, MSI, PLESSEY, PLANET, POSTNET, RSS-Stacked, GS1 DataBar, China Post, Telepen, LOGMARS • 2D bar code PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS |
| Font and barcode rotation | 0, 90, 180, 270 degree |
| Printer language | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
| Media width | 20 ~ 118 mm (0.8” ~ 4.7”) |
| Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) |
| Media core diameter | 25.4 mm or 38.1 mm (1” or 1.5”) |
| Label length | 5 ~ 2,794 mm (0.2” ~ 110”) |
| Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
| Safety regulation | FCC Class A, CE Class A, RCM Class A, cTUVus, TÜV/safety, CCC, BIS, KC, BSMI, EAC, ENERGY STAR® |
| Environmental concern | Comply with RoHS, REACH, WEEE |
| Accessories | • Windows labelling software CD disk • Quick start guide • USB cable • Power cord |
| Limited warranty | • Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first |
| Dealer options | • Peel-off kit • Regular guillotine cutter (full cut) • Internal Bluetooth 4.2 • 802.11 a/b/g/n wireless module (for device without slot-in housing)* |
| User options | • KP-200 Plus keyboard display unit • 802.11 a/b/g/n wireless module (for device with slot-in housing)* |
