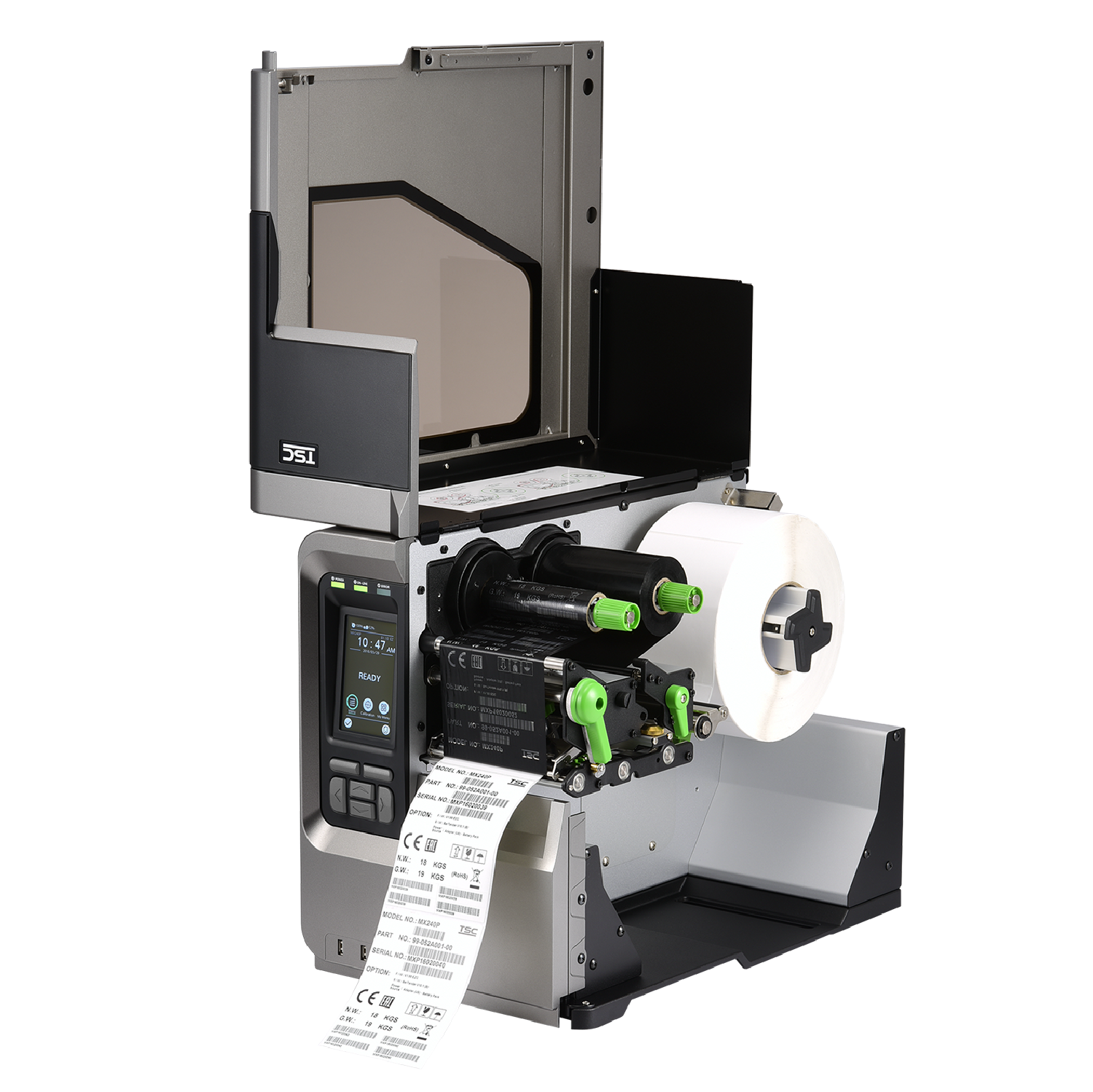

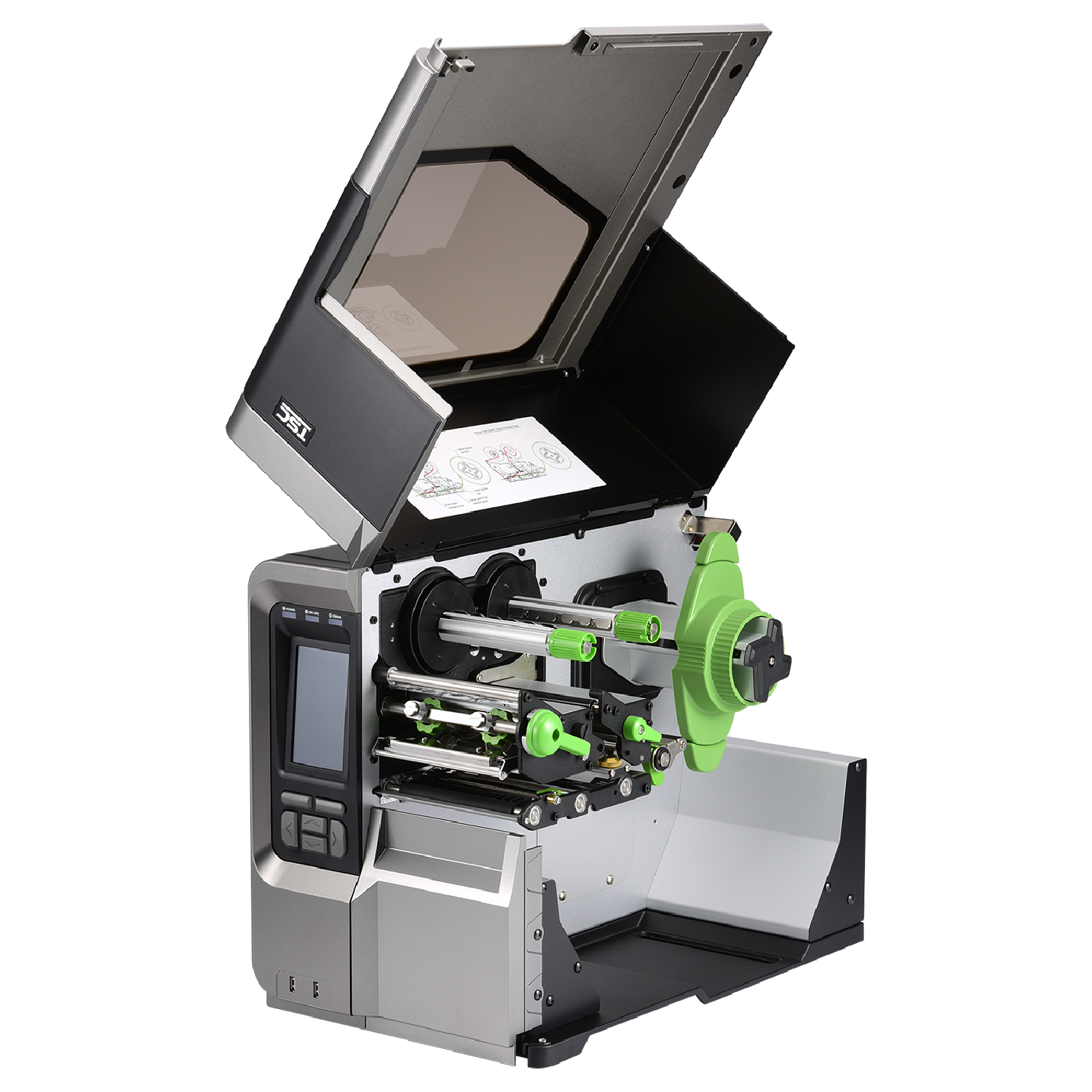

TSC MX641P Thermal Transfer Label Printer
MX Series 4-Inch Performance Industrial Printers
TSC MX Series printers feature their fastest print speeds ever, these printers are made to boost productivity and are ideal for applications that include manufacturing, logistics, shipping, and product identification.
Industries and Applications |
||||
 |
 |
 |
 |
 |
| Warehouse & Fulfillment | Manufacturing | Healthcare | Product and Item Labels | Shipping and Logistics |
The MX Series industrial thermal printers are ruggedly built for high-volume, high-quality, label printing. The industrial-grade MX Series was designed to deliver 24×7 high-volume performance. It features a die-cast aluminium print mechanism housed in a very strong yet lightweight cabinet. This design results in a more durable printer that is suited for your most heavy-duty demand cycles.
The MX Series industrial thermal printers are ruggedly built for high-volume, high-quality, label printing.
There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18-inches per second, MX340P offers a higher 300 dpi resolution at speeds up to 14-inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print, and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
The new MX241P Series industrial thermal printer is ruggedly built for high-volume, high-quality label printing. Featuring one of the fastest print speeds in its class, the MX241P Series boosts productivity with quicker processing power, communications, and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.
Sophisticated TSC Sense Care
TSC Sense Care can auto scan and detect printhead bad dots during the printing process and support both top and bottom black mark sensors for switching easily.
Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise printer management to manage multiple tasks, reduce maintenance costs and avoid downtime of business-critical devices.
Rugged Design
Rugged design with die-casting structure ensures a stable media path for outstanding print quality and accuracy. The powerful peel-off capability fits various label sizes.
Multi-Connectivity
MX241P series offers GPIO to support mainstream connectors and emulations and optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.
High-Performance
MX241P Enhanced media drive module with a strong belt makes sure high print quality with high speed (up to 18 ips) with less noise and features precise media registration in Tear-off mode (min. 3mm label length).
| Hardware Specifications | |
| Resolution | 600 dpi (24 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display |
Colour LCD touchscreen with buttons
|
| Hardwire Connectivity | Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
| Wireless Connectivity | Bluetooth MFi Wi-Fi with Bluetooth |
| Enterprise Printer Management | TSC Console SOTI Connect (license required) |
| Type | Industrial |
| Max. Print Speed | Up to 6 ips (152 mm/s) |
| Max. Print Width | 4.09″ (104 mm) |
| Max. Print Length | 100″ (2,540 mm) |
| RAM | 512 MB SDRAM |
| Flash | 512 MB |
| Expandable Flash | microSD card reader; up to 32 GB |
| Optional Cutter | Regular guillotine cutter; Rotary heavy-duty cutter |
Media Specifications
| Internal Label Capacity | 8″ (203.2 mm) OD |
| Max. Media Width | 0.78″ – 4.49″ (20 – 114 mm) |
| Media Type | Continuous, Die-Cut, Black Mark (bottom side or top side black mark), Fan-Fold, Notch, Perforated, Tag, Care Label (outside wound) |
| Max. Ribbon Length | 600 Meters |
| Ribbon Width | 1” ~ 4.5” (25.4 ~ 114.3 mm) |
| Media Core Diameter | 3″ (76.2 mm) |
| Min. Label Length | 0.1″ (3 mm) |
| Construction | Die-cast print mechanism with large clear media view window |
| Programming Languages | TSPL-EZD |
STANDARD ACCESSORIES:
Windows labelling software CD
Quick Installation Guide (QIG)
USB cable
Power cable
*Whilst we try to provide accurate product information, please confirm the product specifications with the manufacturer.
