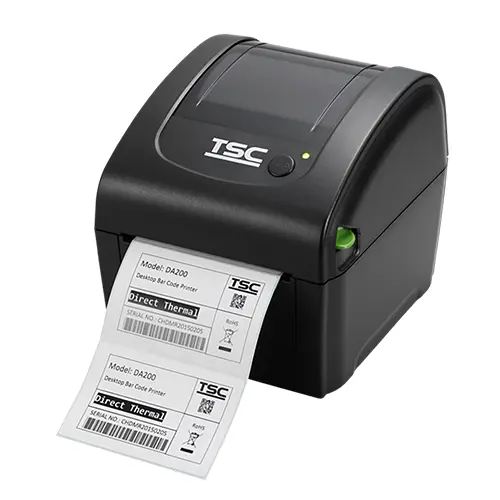

TSC Thermal Label Printer DA220 203 dpi USB Ethernet

£252.38 exc. VAT

DA Series

The DA series offers both 203 and 300 dpi print resolution with printing speeds up to a fast 6 ips.*  The large 60-watt power supply produces high quality printed labels, even at its fastest print speeds.

*See individual specifications.

SKU: 99-158A013-1102 Category: Tags: , ,

DA Series 4-Inch Performance Desktop Printers

Our DA series desktop printers are an ideal combination of affordability with a durable and reliable design. The DA series offers both 203 and 300 dpi print resolution with printing speeds up to a fast 6 ips*. The large 60-watt power supply produces high quality printed labels, even at its fastest print speeds.

Linerless models are available.

Qualifies for:
– Extended Warranty 3, 4, 5 years
– Comprehensive Warranty 2, 3, 4, 5 years

*See individual specifications.

Industries and Applications

Transportation & Logistics Retail Entertainment & Hospitality Product and Item Labels Receipts
Transportation & Logistics Retail Entertainment & Hospitality Product and Item Labels Receipts
Shipping and Logistics Small Labels
Shipping and Logistics Small Labels
The DA Series features a user-friendly design ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and many more at a very competitive price.

Resolution 203 dpi (8 dots/mm)
Print Method Direct thermal only
Display LED with buttons
Hardwire Connectivity Ethernet
Serial RS-232
USB
USB Host
Enterprise Printer Management TSC Console
Type Desktop
Max. Print Speed Up to 6 ips (152 mm/s)
Max. Print Width 4.25″ (108 mm)
Max. Print Length 1000″ (25400 mm)
RAM 64 MB SDRAM
Flash 128 MB
Optional Cutter Guillotine cutter (full-cut or partial-cut)

Media Specifications

Internal Label Capacity 5″ (127 mm) OD
Max. Media Width 0.7″ – 4.5″ (19 – 114 mm)
Media Type Continuous; Black Mark; Fan-Fold; Notched (Outside Wound)
Media Core Diameter 1″ – 1.5″ (25.4 – 38 mm)
Min. Label Length 0.39″ (10 mm)
Construction Clamshell with double-walled plastic
Programming Languages TSPL-EZD



STANDARD CONFIGURATION:
Direct thermal label printer USB 2.0 (High speed mode)
DA220/DA320: 64MB DRAM 128MB Flash USB 2.0 including RTC

STANDARD ACCESSORIES:
Windows labelling software CD
Quick Installation Guide (QIG)
USB cable Power cord
External universal switching power supply
