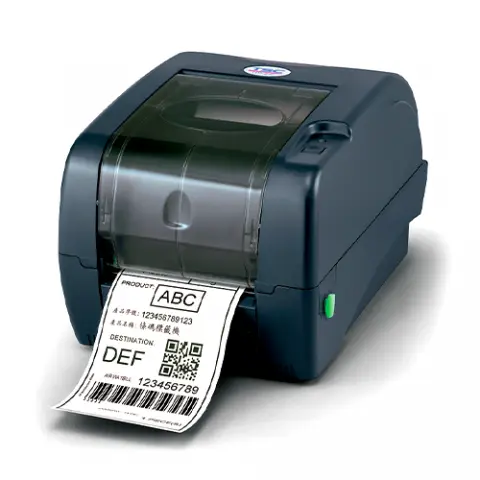

TTP Series 4-Inch Performance Desktop Printers
These enhanced TTP desktop printers feature the same features as their preceding models, plus brand-new state-of-the-art electronics, packing even more performance into an entry-level platform.
The TTP-345 – offers high resolution 300 dpi printing at 5 inches per second. Also offering 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.
Qualifies for:
– Extended Warranty 3, 4, 5 years
– Comprehensive Warranty 2, 3, 4, 5 years
*See individual specifications.
Industries and Applications
 |
 |
 |
 |
 |
| Manufacturing | Retail | Healthcare | Product and Item Labels | Shipping and Logistics |
This printers durability and on-going performance make it ideal for labelling in the following applications:
• Shipping & Receiving
• Compliance Labelling
• Asset Tracking
• Inventory Control
• Document Management
• Shelf Labelling
• Product Marking
• Specimen Labelling
• Patient Tracking
Hardware Specifications
| Resolution | 300 dpi (12 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display | LED with buttons |
| Hardwire Connectivity | Ethernet Parallel port Serial RS-232 USB |
| Enterprise Printer Management | TSC Console |
| Type | Desktop |
| Max. Print Speed | Up to 5 ips (127 mm/s) |
| Max. Print Width | 4.17″ (106 mm) |
| Max. Print Length | 40″ (1.016 mm) |
| RAM | 8 MB SDRAM |
| Flash | 4 MB |
| Expandable Flash | SD memory card reader; up to 4 GB |
| Keyboard | Standalone keyboard |
| Optional Cutter | Guillotine cutter (full-cut or partial-cut) |
Media Specifications
| Internal Label Capacity | 5″ (127 mm) OD |
| Max. Media Width | 0.79″ – 4.4″ (20 – 112 mm) |
| Media Type | Continuous; Die-Cut; Black Mark; Fan-Fold; Notch (Outside Wound) |
| Max. Ribbon Length | 300 Meters |
| Ribbon Width | 1.6″ – 4.3″ (40 – 110 mm) |
| Media Core Diameter | 1″ – 3″ (25.4 – 76.2 mm) |
| Construction | Clamshell with double-walled plastic |
| Programming Languages | TSPL-EZD |
STANDARD CONFIGURATION:
Thermal transfer label printer 8MB SDRAM 4MB Flash RS-232 Centronics USB 2.0 SD card slot for memory expansion
STANDARD ACCESSORIES:
Windows labelling software CD Quick Installation Guide (QIG)
USB cable Power cord External universal switching power supply Label spindle
fixing tab x 2 1.5“ core adapter x 2 Ribbon spindle x 2 Ribbon rewind spindle paper core
