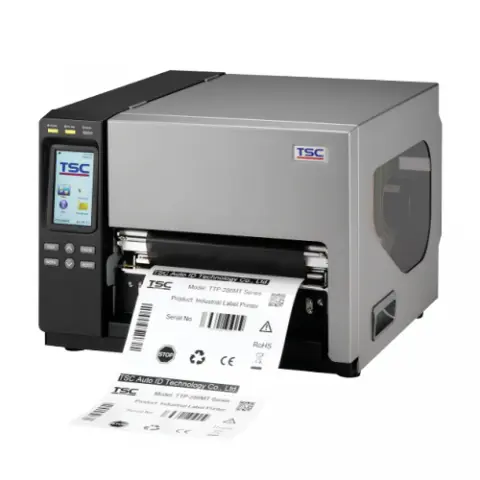

TTP Series 8-Inch Performance Industrial Printers
This 8-inch wide industrial printer series features two models to meet your wide format labelling needs: TTP-286MT, 203 dpi resolution at print speeds up to 6-inches per second. TTP-384MT, 300 dpi resolution at print speeds up to 4 inches per second. With its wide printing capabilities, the TTP-286MT is designed to print wide lateral bar codes without the need for image rotation.
The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labelling, brand marketing, inventory control, drum labelling, warning signs and a host of other signage solutions. The TTP-286MT Series features two models to meet your wide format labelling needs:
TTP-286MT – 203 dpi resolution, 8.5-inch print width, 6 ips (152 mm/second) print speed. * See Individual Printer Specifications
TTP-384MT – 300 dpi resolution, 8.64-inch print width, 4 ips (102 mm/second) print speed. * See Individual Printer Specifications
TTP-286MT Series can accommodate label widths up to 9.5-inches, with a maximum print width up to 8.64-inches at 300 dpi resolution and 8.5-inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.
Enhanced High-Speed Performance, Colour Touch Display
TTP-286MT Series features a new faster processor, and all the memory customers will need to print high quality labels at the fastest speeds.
High-Speed Performance, More memory
The TTP-286MT Series features increased memory of 512 MB Flash and 256 MB SDRAM. Internal Ethernet, USB 2.0, USB host, parallel and serial interfaces come standard.
A Colourful Choice
The new TTP-286MT Series comes with a high-contrast 4.3″ colour touch LCD panel with 6 button control user friendly design for simple printer set up and job status.
Loaded with Standard Features
The TTP-286MT Series features a rigid, full die-cast aluminium frame designed to last in tough environments and supports a large 8.2-inch outer diameter label roll and up to 600 meter ribbon capacity for high volume printing. The TTP-286MT Series features a centre-bias label handling mechanism that makes media loading and adjustment easy.
Because our printers our built to last, we back them with a standard two-year limited warranty.
Powerful TSPL-EZ Printer Programming Language
TTP-286MT Series features the TSPL-EZ printer-control language, a fully compatible set of standard industry emulations, including Line Mode, Eltron® and Zebra® languages and will work in many IT environments including Oracle, SAP, Unix, AS/400, Windows, Stand Alone, and many more.
- Compliance Labelling for Shipping & Receiving
- Brand Marketing Featuring Graphics, Logos & Texts
- Pallet Labelling
- Inventory Control Labelling
- Warning Labels
- Drum Labelling
- Custom Signage
- Multiple-up Labels (two or three labels across)
Qualifies for:
– Extended Warranty 3, 4, 5 years
– Comprehensive Warranty 2, 3, 4, 5 years
*See individual specifications.
Industries and Applications
 |
 |
 |
 |
 |
| Manufacturing | GHS Chemical Labels | Custom Signage | Product and Item Labels | Shipping and Logistics |
Hardware Specifications
| Resolution | 203 dpi (8 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display | Colour LCD touchscreen with buttons |
| Hardwire Connectivity |
Ethernet
GPIO Parallel port Serial RS-232 USB USB Host |
| Enterprise Printer Management | TSC Console |
| Type | Industrial |
| Max. Print Speed | 6 ips (152 mm/second) |
| Max. Print Width | 8.5″ (216 mm) |
| Max. Print Length | 450″ (11,430 mm) |
| RAM | 256 MB SDRAM |
| Flash | 512 MB |
| Expandable Flash | SD memory card reader; up to 32 GB |
| Optional Cutter | Guillotine cutter (full cut), Heavy duty cutter (full cut) |
| Internal Label Capacity | 8.2“ (208.3 mm) OD |
| Max. Media Width | 9.5″ (241.3 mm) |
| Media Type | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) |
| Max. Ribbon Length | 600 m |
| Ribbon Width | 4.3“ – 10“ (110 mm – 254 mm) |
| Media Core Diameter | 3″ (76.2 mm) |
| Min. Label Length | 1″ (25.4 mm) |
| Construction | Die-cast chassis/Sheet metal structure with clear media view window |
| Programming Languages | TSPL-EZD |
STANDARD CONFIGURATION:
Thermal transfer label printer, 256MB SDRAM, 512MB Flash, LCD, Internal Ethernet, RS-232, Centronics, USB 2.0, USB host, SD card slot for memory expansion
STANDARD ACCESSORIES:
Windows labelling software CD, Quick Installation Guide (QIG), USB cable, Power cord, Ribbon take-up paper core
